Single Axis Laser Diameter Guage Non Contact Online Measurement LDM-25 LDM-50

I'm Online Chat Now

Single Axis Laser Diameter Guage Non Contact Online Measurement LDM-25 LDM-50

Single Axis Laser Diameter Guage Non Contact Online Measurement LDM-25 LDM-50
Single Axis Laser Diameter Guage Non Contact Online Measurement LDM-25 LDM-50
video play

Large Image :  Single Axis Laser Diameter Guage Non Contact Online Measurement LDM-25 LDM-50

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: CE certificate ISO9001
Model Number: LDM-25 LDM-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Measurement Range: 0.1mm-20mm. 0.2mm-45mm Measurement Accuracy: ±1μm
Weight: 24Kg (After Packing) Resolution: 1μm
Material: Metal Color: Blue
High Light:

laser gauge measurement

,

wire gauge diameter

,

Laser non contact diameter measurement

Single Axis laser diameter gauge is the high-accuracy survey installment that uses the laser scan to carry on Non-contact the on-line measure.

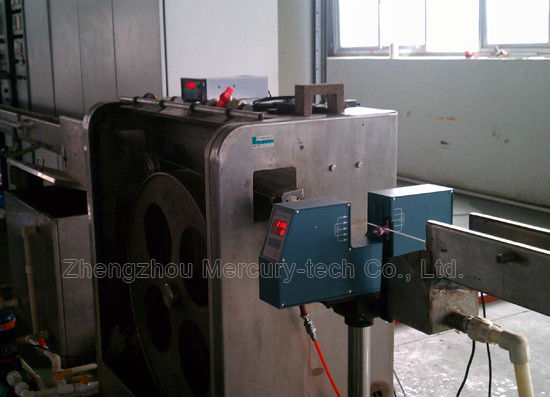

Mainly used in a variety of wires, cables, pipe production line, the measurement of outer diameter and adjust the extruder screw speed or traction speed, to control the purpose of OD. Can also be applied to the outer diameter of workpiece and size measurements.

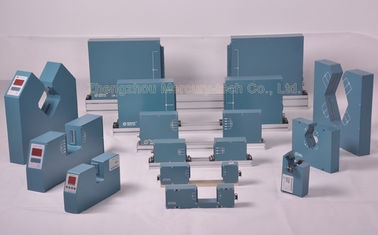

LDM Series single axis laser diameter gauge is the classic Mercury-Tech product series, with decades of technological innovation and more than 1,000 customers use these products, high accuracy, reliable product. Currently it is the wire, cable, pipe measurement's best choice. It develops 10 models in the series .



SPECIFICATIONS FOR LDM-25/50 Laser Diameter Gauge



Laser Diameter Gauge

Measuring Range 0.1mm -20 mm 0.2mm - 45 mm
Accuracy* 0.001mm 0.001mm
Resolution 0.001 0.001



Controller

Performance parameters

Serial I/O RS485 RS485
Analogues Output 16 bit ±10V DC Output 16 bit ±10V DC Output
Relay Output Upper Tolerance, Lower Tolerance Upper Tolerance, Lower Tolerance



Hydraulic system

Power ~220V±15%, 50-60HZ ~220V±15%, 50-60HZ
Temperature -10~40℃ -10~40℃
Humidity <85% RH <85% RH



Single Axis Laser Diameter Guage Non Contact Online Measurement LDM-25 LDM-50 0

Main Features
① non-contact laser diameter measurement, high speed, high accuracy and good repeatability.
② Real time outside diameter and roundness display, improve quality control and production efficiency, reduce the waste of materials.
③ Various digital and analog control signal functions, to achieve fully automated production.
④ Various preset functions,nominal value, the upper and lower tolerance, alarm control presets, easy to operate.
⑤ Standard data port connection ready,compatible software for data analysis development convenience.



Laser Diameter Gauge Measuring Head
Model: LDM-25/LDM-50
Brand: MERCURY-TECH
Gauge Head Serial I/O: RS485



Main Controller Features
1. It be used to remote display and control.
2. It Can control the speed of DC motors, VVVF motor(extruder or the tractor).
3. It's suitable for Laboratory use.
4. It will alarm,when the diameter go beyond the the set tolerance.
5. With RS485 It can connect to PLC industry controlling computer.
6. Dimensions: 100mm×100mm×120mm (Model:DDC-5)



Laser Diameter Gauge Performance
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Work mode: continuous
Power consumption: <30W

Electronical Parameter
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH



Single Axis Laser Diameter Guage Non Contact Online Measurement LDM-25 LDM-50 1

Packing & Delivery

Size 76 (L) * 34 (W) * 27 (D)
Weight 24KG
Packaging Details

The normal package is Paper box

FedEx DHL and TNT is available
