Wire Cable Pipe high Precision Non-contact online measurement and control instrument
Wire and cable Non-contact online measurement and control instrument is the high-accuracy survey installment that uses the laser scan to carry on Non-contact the on-line measure.
Mainly used in a variety of wires, cables, pipe production line, the measurement of outer diameter and adjust the extruder screw speed or traction speed, to control the purpose of OD. Can also be applied to the outer diameter of workpiece and size measurements.

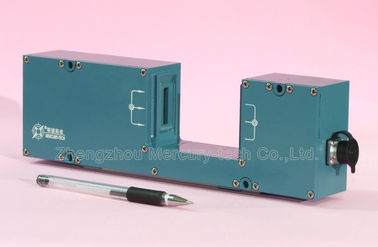

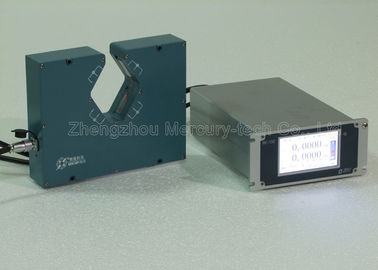

| Type | Single Axis laser diameter gauge |

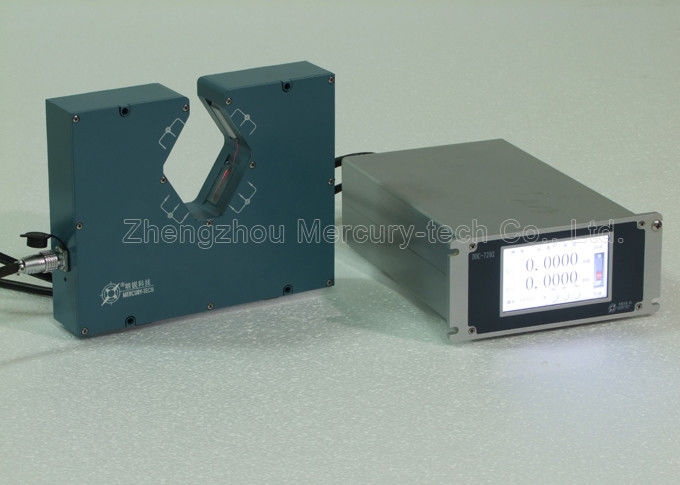

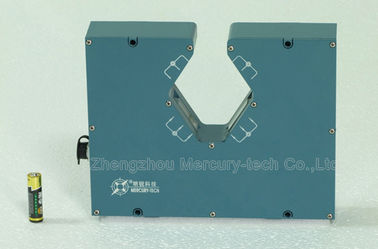

Dual Axis laser diameter gauge |
| Measuring head | LDM1025 | LDM2025 |
| Controller | DDC-7202 | DDC-7202 |
| Gate Size | 25mm | 25mm |
| Measuring Range | 0.1 - 20mm | 0.1 - 20mm |
| Min Measured Size | 0.1mm | 0.1mm |
| Laser Type |
Visual Red Semi-Conductorlaser 660mm |
Visual Red Semi-Conductorlaser 660mm |
| Accuracy | ±0.5μm | ±0.5μm |
| Repeatability | 0.15μm | 0.15μm |
| Data Collection speed | 1400 Times/Sec | 800 Times/Sec |
| Max Scan speed | 82m/s | 82m/s |
| Temperature | -10 - 50℃ | -10 - 50℃ |
| Humidity | 35% - 85% | 35% - 85% |
| Net Weight | 1.4Kg | 3.0Kg |
| Dimension | 263.5×80×45mm | 187×240×50mm |
| Display Type | 4.3 Inch Touch Screen | 4.3 Inch Touch Screen |
| Units of Measurement | mm or inch | |
| Adjustable Resolution | 0.0001mm - 0.1mm 0.00001 inch - 0.01 inch | |
| Alarm Relay output | 2 NO or NC Terminal | |
| Analog Output | +TOL,-Tol Output PIC Output Control Voltage: 16 bit ± 10V DC Current: 0 - 10 mA ( for Speed Control ) |
|
| Communication Output | RS485, Ethernet | |
| Output port | 2 Ways OC Output | |
| Controller Dimension | 190 × 86 × 270mm | |
| Installation Size | 164 × 82mm | |
| Panel Installation Size | 180 × 66mm | |
| Features | 1. Connect up to four sets of single-axis laser diameter gauge or 2-axis laser diameter gauge or two laser-CCD gauge. 2. Display functions: multi-axis measurements. +Tol, -Tol value,etc. |
|
LDM Series Gauge is the classic Mercury-Tech product series, with decades of technological innovation and more than 1,000 customers use these products, high accuracy, reliable product. Currently it is the wire, cable, pipe measurement’s best choice. It develops 10 models in the series .
