Laser Diameter Measuring Gauge , Axis And Rubber Roller Diameter Testing Instruments

I'm Online Chat Now

Laser Diameter Measuring Gauge , Axis And Rubber Roller Diameter Testing Instruments

Laser Diameter Measuring Gauge , Axis And Rubber Roller Diameter Testing Instruments
Laser Diameter Measuring Gauge , Axis And Rubber Roller Diameter Testing Instruments Laser Diameter Measuring Gauge , Axis And Rubber Roller Diameter Testing Instruments Laser Diameter Measuring Gauge , Axis And Rubber Roller Diameter Testing Instruments

Large Image :  Laser Diameter Measuring Gauge , Axis And Rubber Roller Diameter Testing Instruments

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: ISO9001
Model Number: LDM50S LDM100S LDM150S LDM210S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Measurement Range: 0.2mm-45mm. 0.2mm-95mm. 0.2mm-145mm. 0.2mm-205mm Measurement Accuracy: ±1μm
Resolution: 1μm Material: Metal
Color: Blue Type: Measurement Tool
Lead Time: Within 3 Days
High Light:

wheel diameter measuring gauge

,

wire diameter measure

,

laser diameter testing instruments

Axis and Rubber Roller diameter testing instruments uses laser scanning principle to realize non-contacting and high-precision measurement and control. It can be used for matal shaft, rubber roller, magnetic roller to show the diameter, non-roundness and runout.

1. Technical parameters
Model Measuring Range Resolution Accuracy
LDM-50S 0.2-45mm 0.001 ±0.02%×(Reading)±0.002mm
LDM-100S 0.2-95mm 0.001 ±0.02%×(Reading)±0.002mm
LDM-150S 0.2-145mm 0.001 ±0.02%×(Reading)±0.01mm

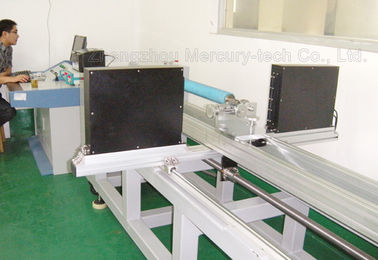

Laser Diameter Measuring Gauge , Axis And Rubber Roller Diameter Testing Instruments 0

2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Operating temperature: -10 ~ 40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W

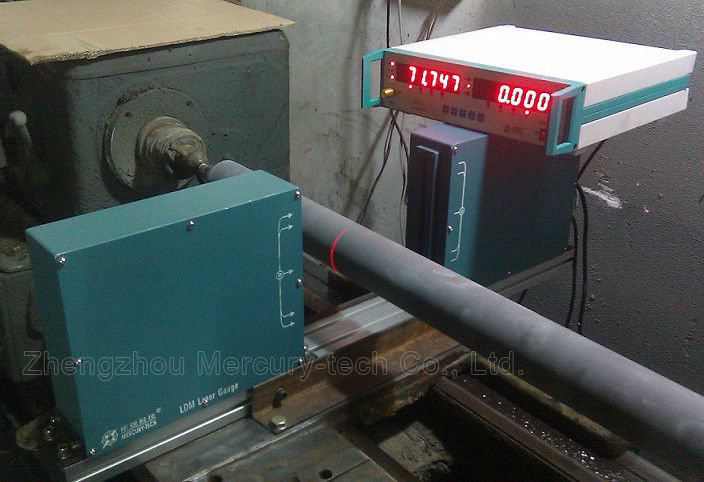

Laser Diameter Measuring Gauge , Axis And Rubber Roller Diameter Testing Instruments 1

3. Display Controller (Model:DDC-6)
1). It be used to remote display and control.
2). Can simultaneously measure the outside diameter, roundness, runout, including oval diameter. It can be used for shaft testing, the detection of rubber roller, honeycomb ceramic detection.
Signal distance: more than 500m
Output voltage: plus/minus10V
External dimensions: 350mm * 350mm * 100mm (Model:DDC-6)



In laser measurement industry, Mercury-Tech’s products have successfully been used by a number of global enterprises and Fortune 500 companies, such as the Teledyne Technology, TE, Goodyear, Faber Castell, LG, the Darka, Hitachi, Fujikara, Zhejiang University, Beijing University of Science and Technology, Baosheng cable, Shangshang cable. Customers are in 37 countries, such as US, Britain, Germany, France and Japan.
