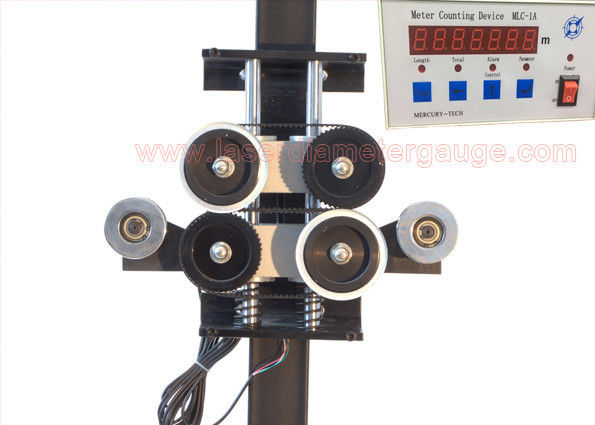

Multifunctional Cable Length Meter Counter / Length Measuring Instrument

I'm Online Chat Now

Multifunctional Cable Length Meter Counter / Length Measuring Instrument

Multifunctional Cable Length Meter Counter / Length Measuring Instrument
Multifunctional Cable Length Meter Counter / Length Measuring Instrument

Large Image :  Multifunctional Cable Length Meter Counter / Length Measuring Instrument

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: ISO9001
Model Number: CCDD-150L CCDD-60L CCDD-30L
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Lead Time: Within 2 Days Control: Relay Output
Power: 220V, 50Hz Or Per Request Digit: 7 Digits
Material: Aluminium Length: Preset
Color: Black
High Light:

cable length measurement tool

,

cable measuring device

Multifunctional Cable Length Meter Counter Length Measuring Instrument Good Quality. Model CCDD-150L CCDD-60L CCDD-30L.

The equipment has the following product features.
1. Designed for wire and cable pipe meter and design process, high precision.
2. LED display is clear and easy reading.
3. Electronic controller unit provides multiple sets of relay output, easy to manage the production automatically .
4. High accuracy,up to +/- 0.1%
5. Positive or reverse two-way adjustable counting
6. Emergency power down data protection
7. CCDD-150L is specially designed with air cylinder unit.
8. Counter support height can be adjusted to adapt to different heights of the production line.
9. The position of decimal point on display is adjustable..
10.Standard Belt,easy to find replacement belt in market.

Technical parameters.
The model CCDD-30L is used for measuring the length of cable ( external diameter between 1mm - 30mm ).
The model CCDD-60L is used for measuring the length of cable ( external diameter between 1mm - 50mm ).
The model CCDD-150L is used for measuring the length of cable ( external diameter between 3mm - 150mm ).

CCDD series belt type counter will provide you with the industry's most accurate measurement. reduce your production costs. Electronic controller unit can do preset in length, alarm time, and a variety of customized signal output.


ModelCCDD-30LCCDD-60LCCDD-150L
Measuring Range3-30mm3-50mm3-150mm
Max Counting Length9999999999999999999
Max Total Length99999.9999999.9999999.99
Accuracy +/- 0.1%+/- 0.1%+/- 0.1%
Dimension410x180x1200mm430x225x1200mm490x370x590mm
Total Net Weight17KG22KG55KG
Max Measuring Speed400 m/min400 m/min400 m/min
Relay Output222
Alarm OutputYesYesYes
Display digits7 digit7 digit7 digit
Length Measuring UnitMeter Meter Meter
CalibrationYesYesYes
Decimal Point ShiftYesYesYes
Length Preset YesYesYes
Ahead of Preset OutputYesYesYes
Control PresetYesYesYes
Emergent Data ProtectionYesYesYes
Two-Direction CountingYesYesYes
Ft Measuring UnitOptionOptionOption
RS485 OptionOptionOption
Power Consumption<10W<10W<10W
Voltage

220V
50/60HZ

220V
50/60HZ

220V
50/60HZ


The Electronic Counter
Maximum count: 10Km
Measurable length: 0-99999.99m
Cumulative length: 0-9999999m
Calibrate measuring precision.
Protection data when Power Down.
Pre-setting the length.
Pre-setting alarm length.
External dimensions: 160mm×80mm×170mm
Installation hole size: 152mm×76mm
