High Precision Wire Rope Length Measuring Device Model CCDD-60L

I'm Online Chat Now

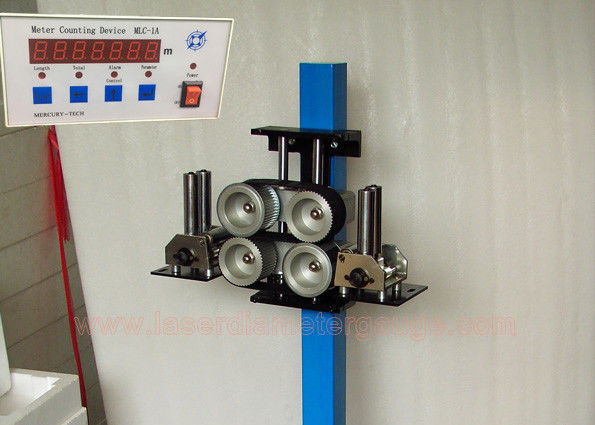

High Precision Wire Rope Length Measuring Device Model CCDD-60L

High Precision Wire Rope Length Measuring Device Model CCDD-60L
High Precision Wire Rope Length Measuring Device Model CCDD-60L

Large Image :  High Precision Wire Rope Length Measuring Device Model CCDD-60L

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: ISO9001
Model Number: CCDD-30L CCDD-60L CCDD-150L
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Features: Easy And Convenient, Complete Functions.long Life Power Input: AC110-220V
Control: Relay Output Material: Aluminium
Digit: 7 Digits Screen Display Length: Preset
High Light:

wire meter counter

,

wire rope length counter

High Precision Cable Length Measuring Device Model CCDD-60L, Model CCDD-30L, Model CCDD-150L.

The Device with the following Characteristics:

1. Designed for wire and cable pipe meter and design process, high precision.
2. LED display is clear and easy reading.
3. Electronic controller unit provides multiple sets of relay output, easy to manage the production automatically .
4. High accuracy,up to +/- 0.1%
5. Positive or reverse two-way adjustable counting
6. Emergency power down data protection
7. CCDD-150L is specially designed with air cylinder unit.
8. Counter support height can be adjusted to adapt to different heights of the production line.
9. The position of decimal point on display is adjustable..
10.Standard Belt,easy to find replacement belt in market.



CCDD series cable length measuring device will provide you with the industry's most accurate measurement. reduce your production costs. Electronic controller unit can do preset in length, alarm time, and a variety of customized signal output.



Technical parameters:
The model CCDD-30L is used for measuring the length of cable ( external diameter between 1mm - 30mm ).
The model CCDD-60L is used for measuring the length of cable ( external diameter between 1mm - 50mm ).
The model CCDD-150L is used for measuring the length of cable ( external diameter between 3mm - 150mm ).



The Electronic Counter
Maximum count: 10Km
Measurable length: 0-99999.99m
Cumulative length: 0-9999999m
Calibrate measuring precision.
Protection data when Power Down.
Pre-setting the length.
Pre-setting alarm length.
External dimensions: 160mm×80mm×170mm
Installation hole size: 152mm×76mm



Specifications

Model CCDD-30L CCDD-60L CCDD-150L
Measuring Range 3-30mm 3-50mm 3-150mm
Max Counting Length 9999999 999999 999999
Max Total Length 99999.99 99999.99 99999.99
Accuracy +/- 0.1% +/- 0.1% +/- 0.1%
Dimension 410x180x1200mm 430x225x1200mm 490x370x590mm
Total Net Weight 17KG 22KG 55KG
Max Measuring Speed 400 m/min 400 m/min 400 m/min
Relay Output 2 2 2
Alarm Output Yes Yes Yes
Display digits 7 digit 7 digit 7 digit
Length Measuring Unit Meter Meter Meter
Calibration Yes Yes Yes
Decimal Point Shift Yes Yes Yes
Length Preset Yes Yes Yes
Ahead of Preset Output Yes Yes Yes
Control Preset Yes Yes Yes
Emergent Data Protection Yes Yes Yes
Two-Direction Counting Yes Yes Yes
Ft Measuring Unit Option Option Option
RS485 Option Option Option
Power Consumption <10W <10W <10W
Voltage

220V

50/60HZ

220V

50/60HZ

220V

50/60HZ
