Product Details:
Payment & Shipping Terms:
|
Length: | Preset | Power Input: | AC110-220V |
---|---|---|---|
Digit: | 7 Digits Screen Display | Count Range: | 0-99999.99m |
Material: | Aluminium | Measurement Accuracy: | 0.001m |
Highlight: | wire length counter,wire meter counter |

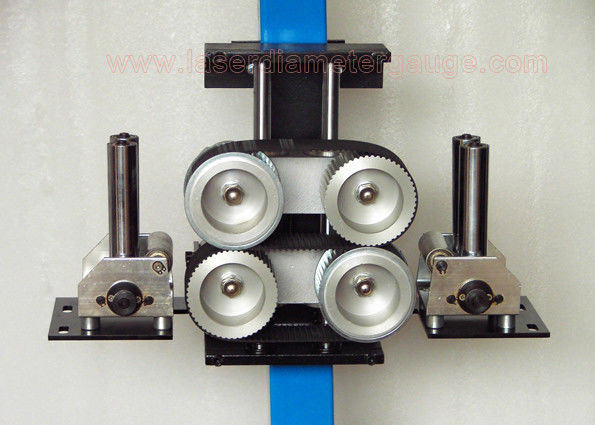

Digital Length Meter Cable and Wire Length Measuring Device Model CCDD-60L, CCDD-150L, CCDD-30L.
Technical parameters:
The model CCDD-30L is used for measuring the length of cable ( external diameter between 1mm - 30mm ).
The model CCDD-60L is used for measuring the length of cable ( external diameter between 1mm - 50mm ).
The model CCDD-150L is used for measuring the length of cable ( external diameter between 3mm - 150mm ).
CCDD series wire length measuring device measurement gauge will provide you with the industry's most accurate measurement. reduce your production costs. Electronic controller unit can do preset in length, alarm time, and a variety of customized signal output.
The Electronic Counter
Maximum count: 10Km
Measurable length: 0-99999.99m
Cumulative length: 0-9999999m
Calibrate measuring precision.
Protection data when Power Down.
Pre-setting the length.
Pre-setting alarm length.
External dimensions: 160mm×80mm×170mm
Installation hole size: 152mm×76mm
Specifications
Model | CCDD-30L | CCDD-60L | CCDD-150L |
Measuring Range | 3-30mm | 3-50mm | 3-150mm |
Max Counting Length | 9999999 | 999999 | 999999 |
Max Total Length | 99999.99 | 99999.99 | 99999.99 |
Accuracy | +/- 0.1% | +/- 0.1% | +/- 0.1% |
Dimension | 410x180x1200mm | 430x225x1200mm | 490x370x590mm |
Total Net Weight | 17KG | 22KG | 55KG |
Max Measuring Speed | 400 m/min | 400 m/min | 400 m/min |
Relay Output | 2 | 2 | 2 |
Alarm Output | Yes | Yes | Yes |
Display digits | 7 digit | 7 digit | 7 digit |
Length Measuring Unit | Meter | Meter | Meter |
Calibration | Yes | Yes | Yes |
Decimal Point Shift | Yes | Yes | Yes |
Length Preset | Yes | Yes | Yes |
Ahead of Preset Output | Yes | Yes | Yes |
Control Preset | Yes | Yes | Yes |
Emergent Data Protection | Yes | Yes | Yes |
Two-Direction Counting | Yes | Yes | Yes |
Ft Measuring Unit | Option | Option | Option |
RS485 | Option | Option | Option |
Power Consumption | <10W | <10W | <10W |
Voltage | 220V | 220V | 220V |
Features
1. Designed for wire and cable pipe meter and design process, high precision.
2. LED display is clear and easy reading.
3. Electronic controller unit provides multiple sets of relay output, easy to manage the production automatically .
4. High accuracy,up to +/- 0.1%
5. Positive or reverse two-way adjustable counting
6. Emergency power down data protection
7. CCDD-150L is specially designed with air cylinder unit.
8. Counter support height can be adjusted to adapt to different heights of the production line.
9. The position of decimal point on display is adjustable..
10.Standard Belt,easy to find replacement belt in market.
