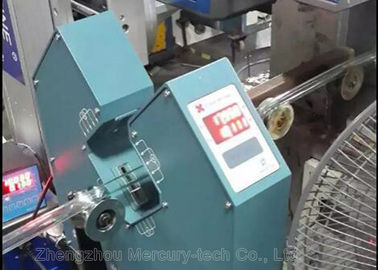

Blue Pipe Diameter Gauge Model LDM-25XY LDM-50XY For Auto Testing Machine

Blue Pipe Diameter Gauge Model LDM-25XY LDM-50XY For Auto Testing Machine
Blue Pipe Diameter Gauge Model LDM-25XY LDM-50XY For Auto Testing Machine
video play

Large Image :  Blue Pipe Diameter Gauge Model LDM-25XY LDM-50XY For Auto Testing Machine

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: CE ISO9001
Model Number: LDM-25XY LDM-50XY LDM-60XY
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Usage: Auto Testing Machine Operating Voltage: ~ 220V ±15% 50 - 60Hz Or Per Request
Measurement Accuracy: ±1μm Resolution: 1μm
Type: Measurement Tool Lead Time: Within 3 Days
Color: Blue
High Light:

tubing gauge thickness

,

inside diameter gauge

,

laser diameter micrometer for pipe

Model LDM-25XY LDM-50XY LDM-60XY Pipe Diameter Gauge Laser Diameter Measurement. Two-dimensional laser diameter micrometer for Pipe, can Online measurement and control.
Dual Axis laser diameter measurement device is the high-accuracy installment that uses the laser scan to carry is the high-accuracy survey installment that uses the laser scan to carry on the no-contacts on-line survey. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.
Applicable to metal wires, glass, pipes, wire and cable, etc. The diameter of the measurement and control. Bi-directional measurement, the average shows that can simultaneously show the wire, pipe diameter, roundness.



1. Technical parameters

Model Measuring range Resolution Accuracy
LDM-25XY 0.1-20mm 0.001mm 0.001mm
LDM-50XY 0.2-45mm 0.001mm 0.002mm
LDM-60XY 0.2-55mm 0.001mm 0.002mm
LDM-100XY 0.2-95mm 0.001mm 0.002mm



2. Main Features
① non-contact laser diameter measurement, high speed, high accuracy and good repeatability.
② Real time outside diameter and roundness display, improve quality control and production efficiency, reduce the waste of materials.
③ Various digital and analog control signal functions, to achieve fully automated production.
④ Various preset functions,nominal value, the upper and lower tolerance, alarm control presets, easy to operate.
⑤ Standard data port connection ready,compatible software for data analysis development convenience.



3. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz (or per request)
Operating temperature:  -10 ~ 40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions: LDM25XY/LDM50XY Gauge head: 420mm * 400mm * 85mm
LDM60XY Gauge head: 380mm * 380mm * 60mm
Stand: 350mm * 200mm * (700-1000)mm
Height of central measuring position: 900-1200mm



4. Main Controller Features
1. It be used to remote display and control.
2. It Can control the speed of DC motors, VVVF motor(extruder or the tractor).
3. It's suitable for Laboratory use.
4. It will alarm,when the diameter go beyond the the set tolerance.
5. With RS485 It can connect to PLC industry controlling computer.
6. Dimensions: 100mm×100mm×120mm (Model:DDC-5)

LDM Series Gauge is the classic Mercury-Tech product series, with decades of technological innovation and more than 1,000 customers use these products, high accuracy, reliable product. Currently it is the wire, cable, pipe measurement's best choice.
