Laser Diameter Measuring Gague Workpiece Outer Diameter Detection

I'm Online Chat Now

Laser Diameter Measuring Gague Workpiece Outer Diameter Detection

Laser Diameter Measuring Gague Workpiece Outer Diameter Detection
Laser Diameter Measuring Gague Workpiece Outer Diameter Detection

Large Image :  Laser Diameter Measuring Gague Workpiece Outer Diameter Detection

Product Details:
Place of Origin: China Zhenghou
Brand Name: Mercury-tech
Certification: ISO9001
Model Number: LDM-50S
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Operating Voltage:: ~ 220V ± 15% 50 - 60Hz Material: Metal
Color: Blue Measurement: Laser Scanning
Type: Measurement Tool Usage: Auto Testing Machine
High Light:

electronic diameter measurement

,

wire diameter measure

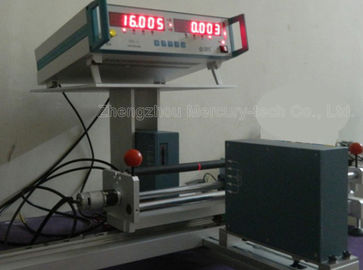

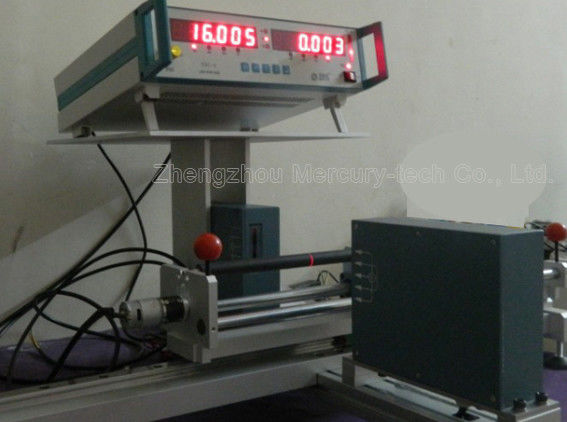

LDM-50S Workpiece Outer Diameter Detection Laser Diameter Measuring Gague

Axis Diameter Measuring Gauge uses laser scanning principle to realize non-contacting and high-precision measurement and control. It can be used for matal shaft, rubber roller, magnetic roller to show the diameter, non-roundness and runout.



1. Technical parameters

Model Measuring Range Resolution Accuracy
LDM-50S 0.2-45mm 0.001 0.002mm
LDM-100S 0.2-95mm 0.01 0.01mm
LDM-150S 0.2-145mm 0.01 0.01mm



2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Operating temperature: -10 ~ 40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W



3. Display Controller (Model:DDC-6)
1). It be used to remote display and control.
2). Can simultaneously measure the outside diameter, roundness, runout, including oval diameter. It can be used for shaft testing, the detection of rubber roller, honeycomb ceramic detection.
Signal distance: more than 500m
Output voltage: plus/minus10V
External dimensions: 350mm * 350mm * 100mm (Model:DDC-6)
