LDM-50S Diameter Measuring Gauge Shaft Outside Diameter and Run Out Value Tester

I'm Online Chat Now

LDM-50S Diameter Measuring Gauge Shaft Outside Diameter and Run Out Value Tester

LDM-50S Diameter Measuring Gauge Shaft Outside Diameter and Run Out Value Tester
LDM-50S Diameter Measuring Gauge Shaft Outside Diameter and Run Out Value Tester

Large Image :  LDM-50S Diameter Measuring Gauge Shaft Outside Diameter and Run Out Value Tester

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: ISO9001
Model Number: LDM-50S
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Operating Voltage: ~ 220V ± 15% 50 - 60Hz As Per Request Measurement: Laser Scanning
Measurement Accuracy: ±0.002mm Resolution: 0.001mm
Color: Blue Material: Metal
High Light:

electronic diameter measurement

,

wire diameter measure

,

shaft outside diameter measuring gauge

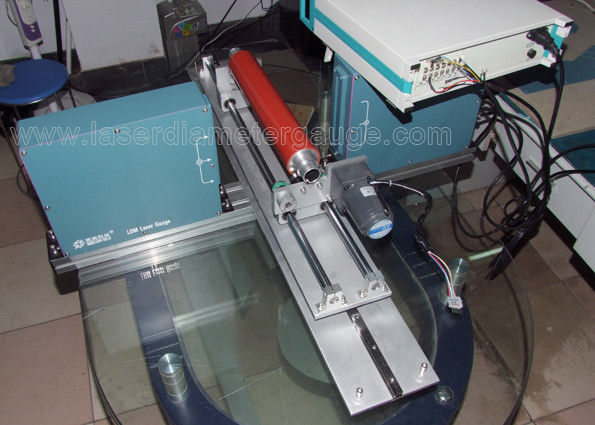

LDM-50S Shaft Outside Diameter and Run-out Value Tester Diameter Measuring Gauge.Axis Diameter Measuring Gauge uses laser scanning principle to realize non-contacting and high-precision measurement and control. It can be used for matal shaft, rubber roller, magnetic roller to show the diameter, non-roundness and runout.



1. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Operating temperature: -10 ~ 40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W



2. Technical parameters

Model Measuring Range Resolution Accuracy
LDM-50S 0.2-45mm 0.001 0.002mm
LDM-100S 0.2-95mm 0.01 0.01mm
LDM-150S 0.2-145mm 0.01 0.01mm



3. Display Controller (Model:DDC-6)
1). It be used to remote display and control.
2). Can simultaneously measure the outside diameter, roundness, runout, including oval diameter. It can be used for shaft testing, the detection of rubber roller, honeycomb ceramic detection.
Signal distance: more than 500m
Output voltage: plus/minus10V
External dimensions: 350mm * 350mm * 100mm (Model:DDC-6)
