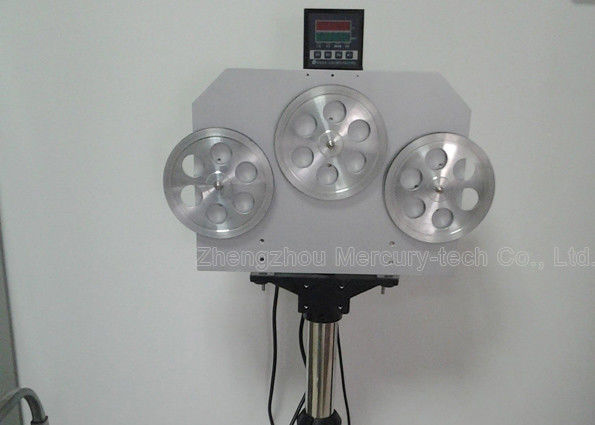

Filaments And Thin line Length Measurement Gauges Wheel Meter Counter Device CCDL-03L

I'm Online Chat Now

Filaments And Thin line Length Measurement Gauges Wheel Meter Counter Device CCDL-03L

Filaments And Thin line Length Measurement Gauges Wheel Meter Counter Device CCDL-03L
Filaments And Thin line Length Measurement Gauges Wheel Meter Counter Device CCDL-03L

Large Image :  Filaments And Thin line Length Measurement Gauges Wheel Meter Counter Device CCDL-03L

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: ISO9001
Model Number: CCDL-03L
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Features: Easy And Convenient, Complete Functions.long Life Type: Measurement Tool
Material: Metal Lead Time: Within 3 Days
Resolution: 0.001mm Power Input: AC110-220V
High Light:

laser length measurement

,

gauge length meaning

,

length measurement gauges meter counter

Filaments And Thin line Length Measurement Gauges Wheel Meter Counter Device CCDL-03L.



Product Introduction
CCDL Series High Precision Wheel Meters will provide the industry's most accurate measurement.
This wire length counter will reduce your cost of production.



Features
1. Designed for wire and cable pipe meter counting.
2. LED display for easy reading and display length and line speed.
3. Electronic controllers provide multiple setting of relay output, easy to do automated control.
4. High accuracy: +/- 0.1%
5. Positive direction or reverse two-way adjustable counting
6. Data protection when power down
7. Height stand can be adjusted to adapt to different heights of the production line.
8. Easy to install and long-term use.



Model CCDL-03L
Measuring Range 0.1-3mm
Max Counting Length 99999.9
Max Total Length 999999
Dimension 500mm x 300mm x 1250mm
Accuracy +/- 0.1%
Max Measuring Speed 400 m/min
Relay Output 2
Alarm Output Yes
Display digits 6 digits
Length Measuring Unit meter
Pressure Measuring Unit No
Digital Pressure Control No
Calibration Yes
Decimal Point Shift Yes
Length Preset Yes
Ahead of Preset Output Yes
Control Preset Yes
Emergent Data Protection Yes
Two-Direction Counting Yes
Ft Measuring Unit Option
RS485 Option
Power Consumption <10W
Voltage 220V 50/60HZ
