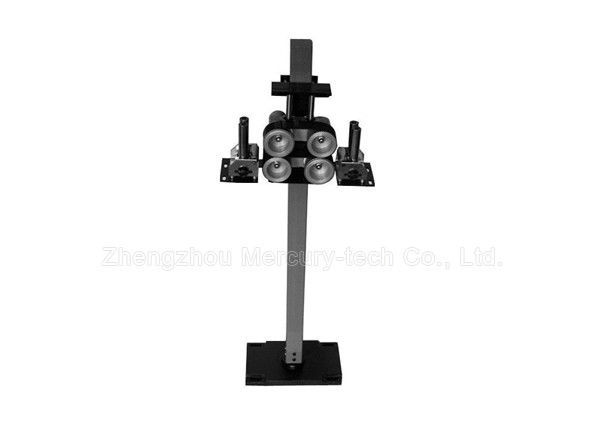

Length Measuring Instrument , Cable Wire Tubing Meter Counter Measure CCDD Series

Length Measuring Instrument , Cable Wire Tubing Meter Counter Measure CCDD Series
Length Measuring Instrument , Cable Wire Tubing Meter Counter Measure CCDD Series

Large Image :  Length Measuring Instrument , Cable Wire Tubing Meter Counter Measure CCDD Series

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: ISO9001
Model Number: CCDD-30L CCDD-60L CCDD-150L
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Digit: 7 Digits Power Input: AC110-220V
Control: Relay Output Length: Preset
Material: Metal Color: Black
High Light:

wire length counter

,

wire meter counter

Wire Cable Pipe Length Measurement Length Measuring Instrument CCDD Series



Technical parameters:
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Power consumption: <10W
Operating temperature: -10 ~ 40 Degrees Celsius
The model CCDD-30L is used for measuring the length of cable ( external diameter between 1mm -30mm )
The model CCDD-60L is used for measuring the length of cable ( external diameter between 1mm -50mm )



Accuracy: 0.1%
External dimensions: 350mm * 150mm * 1500mm
Stand adjust height : 200mm-1450mm
Electronic Counter
Maximum count: 10Km
Measurable length: 0-99999.99m
Cumulative length: 0-9999999m
Calibrate measuring precision.
Protection data when Power Down.
Pre-setting the length.
Pre-setting alarm length.
External dimensions: 160mm * 80mm * 170mm
Installation hole size: 152mm * 76mm



Specifications

Model CCDD-30L CCDD-60L CCDD-150L
Measuring Range 3-30mm 3-50mm 3-150mm
Max Counting Length 9999999 999999 999999
Max Total Length 99999.99 99999.99 99999.99
Accuracy +/- 0.1% +/- 0.1% +/- 0.1%
Dimension 410x180x1200mm 430x225x1200mm 490x370x590mm
Total Net Weight 17KG 22KG 55KG
Max Measuring Speed 400 m/min 400 m/min 400 m/min
Relay Output 2 2 2
Alarm Output Yes Yes Yes
Display digits 7 digit 7 digit 7 digit
Length Measuring Unit Meter Meter Meter
Calibration Yes Yes Yes
Decimal Point Shift Yes Yes Yes
Length Preset Yes Yes Yes
Ahead of Preset Output Yes Yes Yes
Control Preset Yes Yes Yes
Emergent Data Protection Yes Yes Yes
Two-Direction Counting Yes Yes Yes
Ft Measuring Unit Option Option Option
RS485 Option Option Option
Power Consumption <10W <10W <10W
Voltage

220V

50/60HZ

220V

50/60HZ

220V

50/60HZ
