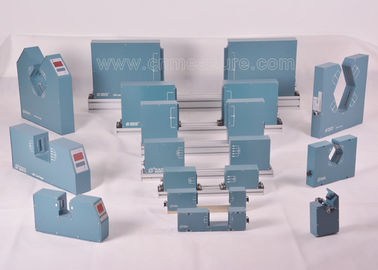

Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device

Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device
Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device
video play

Large Image :  Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: CE ISO9001
Model Number: LDM-25 LDM-50 LDM-25XY LDM-50XY
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Operating Voltage: ~ 220V ±15% 50 - 60Hz As Per Request Type: Measurement Tool
Material: Metal Lead Time: In Three Days After Getting Your Payment
Resolution: 0.001mm Measurement Accuracy: ±0.001mm
High Light:

tubing gauge thickness

,

inside diameter gauge

,

pipe laser diameter measurement unit

Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device.

Specifications
1). Cable wire pipe laser diameter measurement unit
2). Accuracy: 0.001
3). Measurement & control
4). Model LDM-25. diameter measuring range is from 0.1-20mm
     Model LDM-50. diameter measuring range is from 0.2-45mm



Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device 0



Cable wire pipe laser diameter measurement unit is the high-accuracy installment that uses the laser scan to carry on the no-contacts on-line measurement. It is mainly used in measuring of outer diameter and adjusting the extruder screw or traction speed, to control the outside diameter. It is applicable to measure and control the diameter of metal wires, glass, pipes, wire and cable, etc.
It can also be applied to the outer diameter of workpiece and size measurements.

Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device 1



Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device 2


1. Technical parameters

Model LDM-25 LDM-50 LDM-100 LDM-150 LDM-210 LDM-380
Measuring Range 0.2-20mm 0.2-45mm 0.2-95mm 0.2-145mm 0.2-205mm 0.2-375mm
Min Size 0.2mm 0.2mm 0.2mm 0.2mm 0.2mm 0.2mm
Max Size 20mm 45mm 95mm 145mm 205mm 375mm
Accuracy ±0.001 ±0.002 ±0.01 ±0.01 ±0.01 ±0.01
Resolution 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm
Dimension 48.5x20x8.5cm 48.5x20x8.5cm 62x25x6cm 92x29x9.5cm 121x36x8.5cm 45x50x8.5cm(x2)
Units of Measurement mm mm mm mm mm mm
Power ~220V±15%, 50-60HZ
Temperature -10~40
Humidity <85% RH

Gauge Head

Serial I/O

Standard: RS485 Options:RS232 / USB / Profibus
Presets Diameter, +Tol,-Tol, Alarm Setting
Transparent Measurement Option Option Option Option Option Option
Control Output
Serial I/O RS485
Analogues Output 16 bit ±10V DC Output
Relay Output 2 Volt Free (Status, Upper Tolerance, Lower Tolerance)



2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Operating temperature: -10 ~ 40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions:
LDM25/LDM50 Gauge head: 461mm(length) * 80mm(wide) * 200mm(high)
Stand size: 350mm * 200mm * (700-1000)mm
Center high of the measuring position is 900-1200mm
Stand height can be adjusted.

Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device 3

3. Display Controller
1). It be used to remote display and control.
2). Applicable to DC motors, VVVF motor.
3). The controller can control the speed of extruder or the tractor according to the diameter tolerance.
4). Can simultaneously measure the outside diameter.
Signal distance: more than 500m
Output voltage: plus/minus 10V
With RS485 It can connect to PLC industry controlling computer



Cable Wire Pipe Dual Axis Laser Diameter Measurement Unit is the high-accuracy installment that uses the laser scan to carry on the no-contacts on-line measurement. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.
It is applicable to measure and control the diameter of metal wires, glass, pipes, wire and cable, etc. It is overcomes the shortcomming of bi-directional measurement. The display unit can simultaneously show the diameter mean value and roundness of wire and pipe.

Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device 4

1. Technical parameters

Model Measuring Range Resolution Accuracy
LDM-25XY 0.1 - 20mm 0.001 0.001mm
LDM-50XY 0.2 - 45mm 0.001 0.002mm
LDM-60XY 0.2 - 55mm 0.001 0.002mm
LDM-100XY 0.2 - 95mm 0.001 0.002mm



Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device 5
