Laser Diameter Gauge For Cable Model LDM-25XY

I'm Online Chat Now

Laser Diameter Gauge For Cable Model LDM-25XY

Laser Diameter Gauge For Cable Model LDM-25XY
Laser Diameter Gauge For Cable Model LDM-25XY Laser Diameter Gauge For Cable Model LDM-25XY Laser Diameter Gauge For Cable Model LDM-25XY Laser Diameter Gauge For Cable Model LDM-25XY Laser Diameter Gauge For Cable Model LDM-25XY

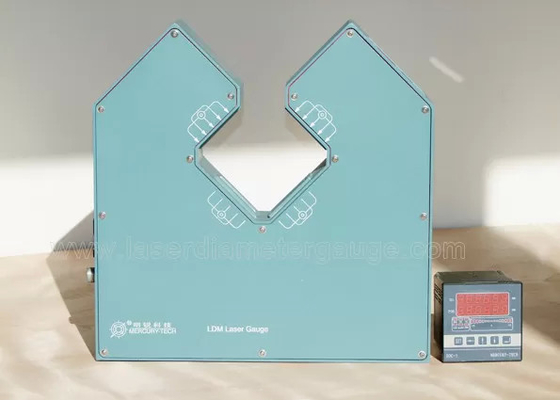

Large Image :  Laser Diameter Gauge For Cable Model LDM-25XY

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: CE
Model Number: LDM25XY LDM50XY LDM60XY LDM100XY
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: USD 1500-3000 PCS
Packaging Details: Carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 2000 PCS
Detailed Product Description
High Light:

Cable Laser diameter gauge

,

LDM-25XY Laser diameter gauge

Laser diameter gauge for cable is the high-accuracy online measurement that uses the laser scan to carry on the no-contacts on-line survey. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.

Applicable to metal wires, glass, pipes, wire and cable, etc. The diameter of the measurement and control.

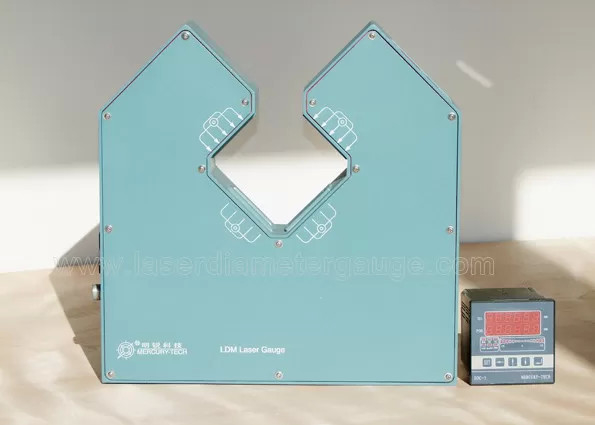

Laser Diameter Gauge For Cable Model LDM-25XY 0

2. Technical parameters

    Model         Measuring Range        Differentiation                            Accuracy

LDM-25XY           0.2-20mm                   0.001                       ±0.01%×(Reading)±0.001mm



Model LDM-25 LDM-50 LDM-100 LDM-150 LDM-210 LDM-380
Measuring Range 0.2-20mm 0.2-45mm 0.2-95mm 0.2-145mm 0.2-205mm 0.2-375mm
Min Size 0.2mm 0.2mm 0.2mm 0.2mm 0.2mm 0.2mm
Max Size 20mm 45mm 95mm 145mm 205mm 375mm
Accuracy ±0.001 ±0.002 ±0.01 ±0.01 ±0.01 ±0.01
Resolution 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm
Dimension 48.5x20x8.5cm 48.5x20x8.5cm 62x25x6cm 92x29x9.5cm 121x36x8.5cm 45x50x8.5cm(x2)
Units of Measurement mm mm mm mm mm mm
Power ~220V±15%, 50-60HZ
Temperature -10~40
Humidity <85% RH

Gauge Head

Serial I/O

Standard: RS485 Options:RS232 / USB / Profibus
Presets Diameter, +Tol,-Tol, Alarm Setting
Transparent Measurement Option Option Option Option Option Option
Control Output
Serial I/O RS485
Analogues Output 16 bit ±10V DC Output
Relay Output 2 Volt Free (Status, Upper Tolerance, Lower Tolerance)

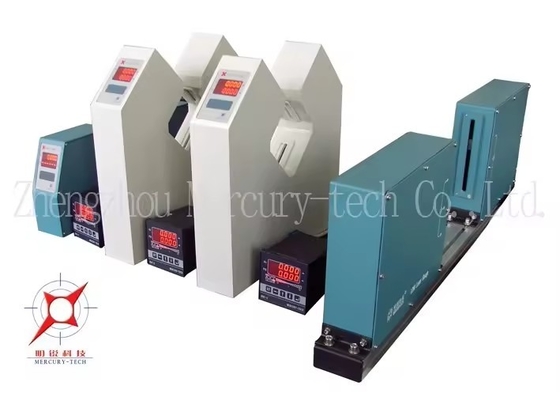

Laser Diameter Gauge For Cable Model LDM-25XY 1

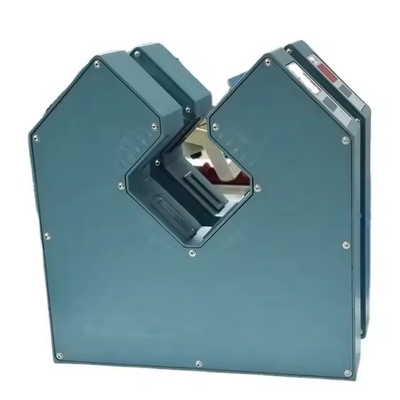

Laser Diameter Gauge For Cable Model LDM-25XY 2

Main Features
1. Non-contact laser diameter measurement, high speed, high accuracy and good repeatability.
2. Real time outside diameter and roundness display, improve quality control and production efficiency, reduce the waste of materials.
3. Various digital and analog control signal functions, to achieve fully automated production.
4. Various preset functions,nominal value, the upper and lower tolerance, alarm control presets, easy to operate.



3. The performance indicators:
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W

Dimensions:

Measuring head: 372mm×360mm×60mm

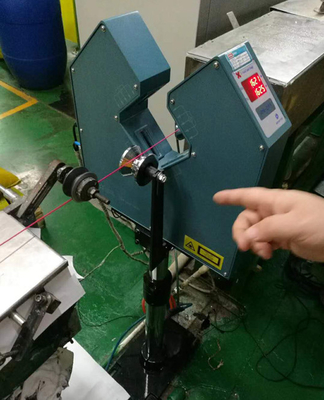

Laser Diameter Gauge For Cable Model LDM-25XY 3
4. The Device with the following Characteristics for laser diameter gauge

1. Can be connected PLC, industrial computer.

2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.

3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.

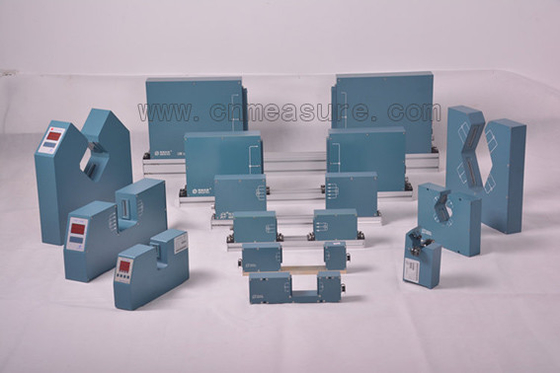

Laser Diameter Gauge For Cable Model LDM-25XY 4
