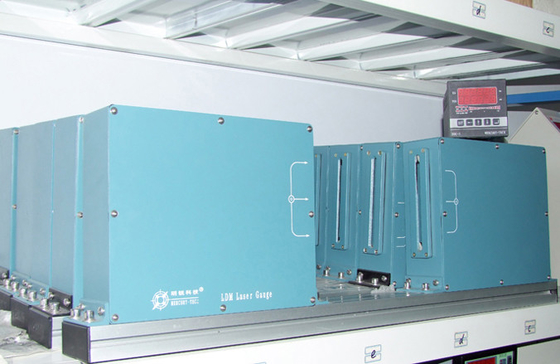

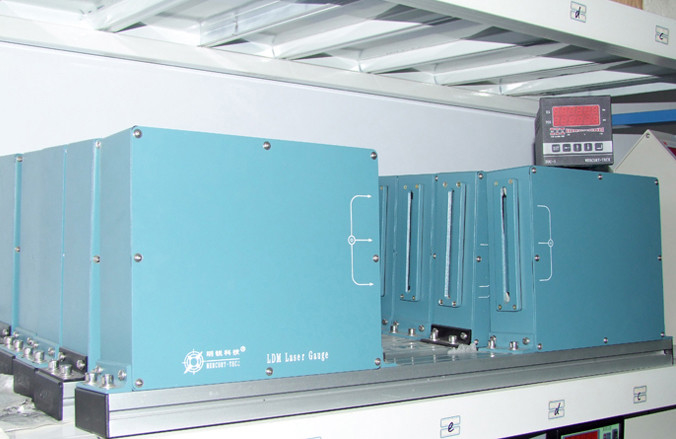

Cable Laser Measuring Equipment Model LDM-150

Cable Laser Measuring Equipment Model LDM-150
Cable Laser Measuring Equipment Model LDM-150
video play

Large Image :  Cable Laser Measuring Equipment Model LDM-150

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: CE
Model Number: LDM-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: USD 4000-8000 PCS
Packaging Details: Carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 2000 PCS
Detailed Product Description
High Light:

Cable laser measuring equipment

,

LDM-150 Cable laser measuring equipment

Cable laser measuring equipment is the high-accuracy survey installment that uses the laser scan to carry on Non-contact the on-line measure.
Mainly used in a variety of wires, cables, pipe production line, the measurement of outer diameter and adjust the extruder screw speed or traction speed, to control the purpose of OD. Can also be applied to the outer diameter of workpiece and size measurements.



Model               Measuring Range             Differentiation                          Accuracy
LDM-100B              0.4-95mm                          0.001                  ±0.02%×(Reading)±0.002mm
LDM-150                0.5-145mm                        0.001                  ±0.02%×(Reading)±0.01mm

LDM-210                0.5-205mm                        0.001                  ±0.02%×(Reading)±0.01mm

Cable Laser Measuring Equipment Model LDM-150 0



The performance indicators:
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
External dimensions:
Dimensions: LDM-150 Measuring head: 910mm×80mm×292mm

Cable Laser Measuring Equipment Model LDM-150 1

The Device with the following Characteristics:
1. Can be connected PLC, industrial computer.
2. can be allocated PLC, IPC Connect.
3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.


Cable Laser Measuring Equipment Model LDM-150 2
Remote Display Controller (Model:DDC-6)
1. It be used to remote display and control.
2. It Can control the speed of DC motors, VVVF motor(extruder or the tractor).
3. It's suitable for Laboratory use.
4. It will alarm,when the diameter go beyond the the set tolerance.
5. With RS485 It can connect to PLC industry controlling computer.
