Wire, cable, pipe, Laser diameter gauge is the high-accuracy survey installment that uses the laser scan to carry on Non-contact the on-line measure.
Mainly used in a variety of wires, cables, pipe production line, the measurement of
outer diameter and adjust the extruder screw speed or traction speed, to control the purpose of OD. Can also be applied to the outer diameter of workpiece and size measurements.

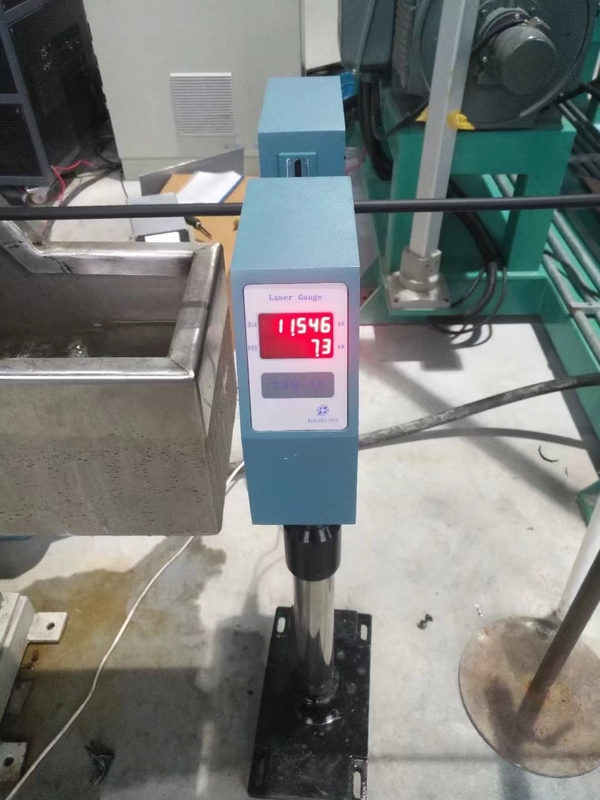

Wire Cable Pipe Laser Diameter Gauge For Industrial 0

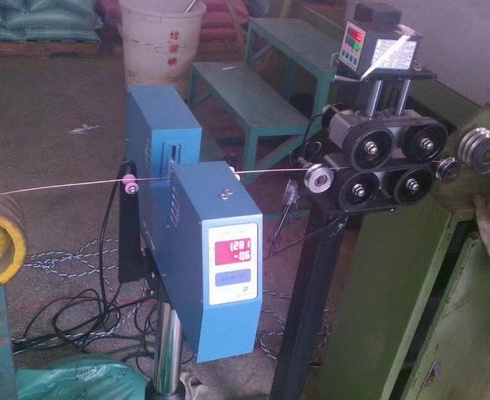

Wire Cable Pipe Laser Diameter Gauge For Industrial 1

1. Technical parameters



Model LDM-25 LDM-50 LDM-100B LDM-150
Measuring Range 0.2-20mm 0.2-45mm 0.2-95mm 0.2-145mm
Min Size 0.2mm 0.2mm 0.2mm 0.2mm
Max Size 20mm 45mm 95mm 145mm
Accuracy* ±0.001 ±0.002 ±0.002 ±0.01
Repeatability** 0.5μm 0.5μm 0.5μm 1μm
Resolution 0.001mm 0.001mm 0.001mm 0.001mm
Dimension 48.5x20x8.5cm 48.5x20x8.5cm 62x25x6cm 92x29x9.5cm
Units of Measurement mm mm mm mm
Power ~220V±15%, 50-60HZ
Temperature -10~40
Humidity <85% RH

Gauge Head

Serial I/O

Standard: RS485 Options:RS232 / USB
Communication Protocol Modbus/Profibus
Presets Diameter, +Tol,-Tol, Alarm Setting
Transparent Measurement Option Option Option Option
Control Output
Serial I/O RS485
Analogues Output 16 bit ±10V DC Output
Relay Output 2 Volt Free (Status, Upper Tolerance, Lower Tolerance)

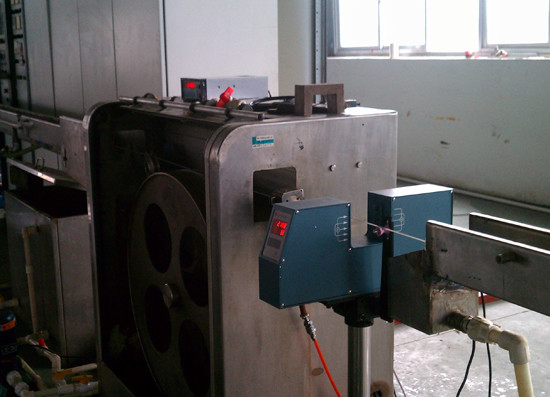

Wire Cable Pipe Laser Diameter Gauge For Industrial 2

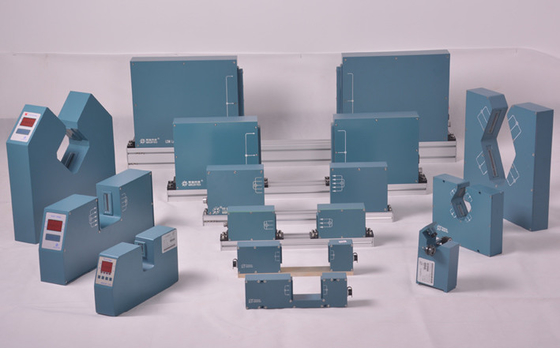

Wire Cable Pipe Laser Diameter Gauge For Industrial 3

2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30WExternal dimensions:
Dimensions: LDM-25/LDM-50 Measuring head: 461mm×80mm×200mm


3. The Device with the following Characteristics
i. Can be connected PLC, industrial computer.
ii. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
iii. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic

feedback control to control the tolerance, improve product quality, reducing

consumption.


4. Display Controller (Model:DDC-7202, DDC-5)
i. It be used to remote display and control.
ii. Applicable to DC motors, VVVF motor.
iii.The controller can control the speed of extruder or the tractor according to the
diameter tolerance.
Signal distance: More than 500m
Output voltage: ±10V
With RS485 It can connect to PLC industry controlling computer
The PROFIBUS-DP or MODBUS
Can be selected.
External dimensions:164mm×85mm×280mm (Model:DDC-3)
100mm×100mm×120mm (Model:DDC-5)
Installation hole size: 152mm×76mm (Model:DDC-3)
90mm×90mm (Model:DDC-5)

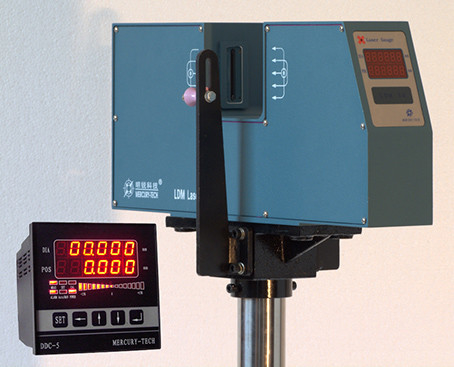

Wire Cable Pipe Laser Diameter Gauge For Industrial 4
