Filament Laser Outer Diameter Measuring Machine Humidity < 85% RH

I'm Online Chat Now

Filament Laser Outer Diameter Measuring Machine Humidity < 85% RH

Filament Laser Outer Diameter Measuring Machine Humidity < 85% RH
Filament Laser Outer Diameter Measuring Machine Humidity < 85% RH

Large Image :  Filament Laser Outer Diameter Measuring Machine Humidity < 85% RH

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: ISO9001
Model Number: CDM03
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Type: Measurement Tool Measurement Accuracy: 0.001mm
Operating Voltage: ~ 220V ±15% 50 - 60Hz Power: Electronic
Lead Time: In Three Days After Getting Your Payment Material: Metal
Color: Blue
High Light:

laser gauge measurement

,

wire gauge diameter

,

filament laser outer diameter measurement

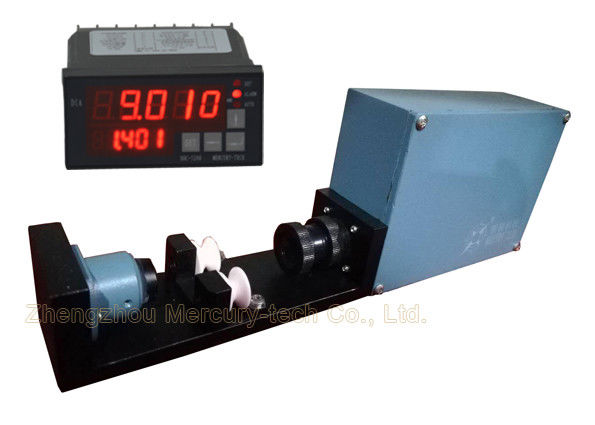

CDM03 Non-contact Filament Diameter Measurement Laser Outer Diameter Measuring Machine.

Filament diameter measuring instrument is the high-accuracy survey installment that uses the CCD scan to carry on the no-contacts on-line survey. Applicable to metal sick, optical fiber , etc with the measurement and control. can simultaneously show the silk and fiber's diameter, roundness.



1. Technical parameters

Model Measuring Range Differentiation Accuracy
LDM-25 0.2-20mm 0.001 ±0.02%×(Reading)±0.001mm
CDM-03 0.01-2mm 0.001 ±0.02%×(Reading)±0.001mm



Filament Laser Outer Diameter Measuring Machine Humidity < 85% RH 0



2. The performance indicators:
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions:
Measuring head: 372mm×360mm×60mm



3. The Device with the following Characteristics
(1). Can be connected PLC, industrial computer.
(2). RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
(3). Can be equipped remote controller DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
