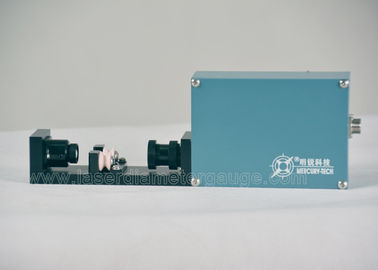

CDM03 Optical Fiber Test Instrument For Diameter Testing Diameter Measuring Machine

CDM03 Optical Fiber Test Instrument For Diameter Testing Diameter Measuring Machine
CDM03 Optical Fiber Test Instrument For Diameter Testing Diameter Measuring Machine CDM03 Optical Fiber Test Instrument For Diameter Testing Diameter Measuring Machine

Large Image :  CDM03 Optical Fiber Test Instrument For Diameter Testing Diameter Measuring Machine

Product Details:
Place of Origin: China Zhengzhou
Brand Name: Mercury-tech
Certification: ISO9001
Model Number: CDM03
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: In three days after getting your payment
Payment Terms: T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Material: Metal Measurement Accuracy: ±0.001mm
Resolution: 0.001mm Type: Measurement Tool
Operating Voltage: ~ 220V ±15% 50 - 60Hz As Per Request Color: Blue
High Light:

laser diameter measurement

,

laser gauge measurement

,

optical fiber test instrument

CDM03 Optical Fiber Test Instrument For Diameter Testing Diameter Measuring Machine.

Mercury CCD measurement device is the high-accuracy survey installment that uses the CCD scan to carry on the no-contacts on-line survey. Green-Ray Technology makes it just hand size.
Applicable to metal sick, optical fiber , etc with the measurement and control. Green Ray CCD measurement can simultaneously show the silk and fiber's diameter, roundness.


2. Technical parameters

Model Measruing range Differentiation Accuracy
CDM-03 0.01mm - 2mm 0.001 ±0.02%×(Reading)±0.001mm



3. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions:
Measuring head: 372mm×360mm×60mm



4. The Device with the following Characteristics
1. Can be connected PLC, industrial computer.
2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
3. Can be equipped remote controller DDC-5, DDC-5200, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
